LK952 UHD Laser Projector High Brightness !
LK952 UHD Laser Projector brings together cutting edge laser technology with the supreme detail level of a 4K UHD resolution. Laser technology gives you incredible longevity with a 20,000 hour light source life avoiding the costs of maintenance and down time. With an incredible 4K resolution the LK952 can reproduce incredibly detailed UHD content perfectly for a razor sharp result.
Ultra-Accurate 4K HDR BlueCore Laser Projection for Superb Image Clarity in Corporate Settings
With the capability of generating intense BlueCore laser-powered brightness for 20,000 hours of maintenance-free operation, BenQ LK952 harnesses the enduring DLP picture quality and razor-sharp 4K resolution to deliver impactful visual communication. With HDMI out for multiple screen applications and versatile installation flexibility empowered by the horizontal and vertical lens shift features, LK952 is tailored towards the diverse range of application scenarios in modern enterprises. By leveraging the innovative HDR technology and industry-leading BlueCore laser light source, LK952 facilitates impactful and professional corporate presentations with an accurate and detailed content display, allowing companies to achieve the utmost efficiency and professionalism.
Superior Brightness
Precision-Aligned High-Output Laser Source
Zero-deviation alignment of BlueCore laser diodes boosts luminous flux into the light tunnel, improving light efficacy to 5,000 lumens.
Superior Performance
Secondary Yellow-Infused Color Wheel
Dual synchronized BlueCore color wheels utilize an additive yellow segment, stimulating precise RGBY spectra for optimal chromatic performance.
Superior Durability
Hermetically Sealed DLP Chip
Comprising over two million micromirrors that reflect pure light through the color wheel, the DLP chip is hermetically sealed to resist heat for over 100,000 hours without degradation.
Superior Image Quality
4K UHD Image Quality for Flawless Presentation with Subtle Details
LK952 produces 4K UHD 3840 x 2160 resolution with 8.3 million distinct pixels for each frame to achieve CTA’s standard, and it utilizes the revolutionary 0.47” single-DMD DLP technology to maximize the projector’s sleek, compact profile for a modern corporate environment. With four times the resolution of Full HD 1080p, 4K UHD delivers awe-inspiring clarity and crisply defined details.

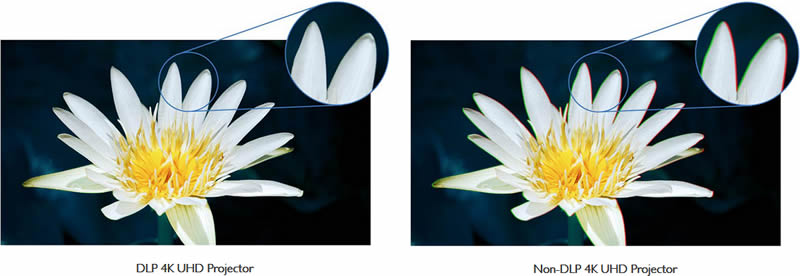

Superb Image Details and Color Integrity from DLP Technology
To avoid inherent alignment issues of multiple panels , which can be more serious when projecting 4K content, BenQ’s LK952 4K Laser Projector preserves color and image integrity with the single DMD DLP technology. Generating razor-sharp images and pure colors, LK952 eliminates problems such as blurriness, shadowing, and interference patterns for immaculate clarity.
Hyper-Realistic Video Quality Empowered by HDR 10 Technology
Supercharged by HDR10 support with BenQ’s exclusive Auto HDR Color Rendition, LK952’s high Dynamic Range performance offers greater brightness, contrast range, and image optimization in a single step, bringing out every detail in 4K content for superior video presentation.
Optimize Image Quality with 4K Image Amplifying Technology
To ensure the best image quality, BenQ’s LK952 adopts the cutting-edge 4K Image Amplifying Technology to further enhance the quality of projected images. LK952 automatically upgrades the resolution of all projected images to 4K, guaranteeing superb image details. Additionally, LK952 also comes with Pixel Enhancer 4K, a motion-adaptive edge enhancement feature that detects changes in the color between an object and its background to produce sharp edges and precise surface textures.

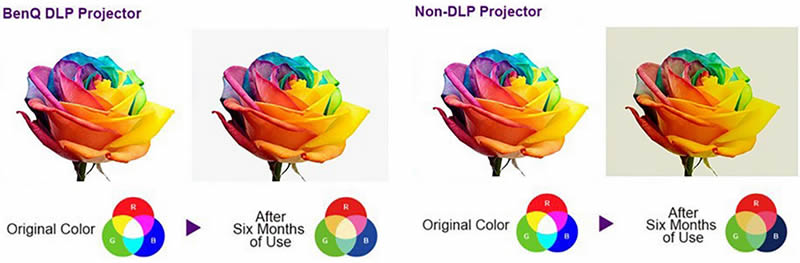

DLP Technology for Lasting Vibrant Color
BenQ BlueCore laser projectors are based on the absolute reliability of the 1-chip DLP design. The highly durable DLP chip can last over 100,000 hours without degradation, ensuring true-to-life colors and pristinely legible text over countless uses.
Vivid Clarity in Bright Ambient Environments
LK952’s 5000lm high brightness allows presenters and participants to deliver presentations in comfortably lit medium-sized conference rooms, supporting uncompromised debate, collaboration, note-taking and interaction to facilitate the most productive meetings. The high luminance provides professional picture quality for installers to satisfy stringent corporate standards.
Laser-Powered Ultra-High Contrast
LK952 laser projector creates strikingly clear images with stratospherically high 3,000,000:1 contrast ratio for true deep blacks, vivid rich colors and fine subtle details. LK952 also features spontaneous response, requiring no wait to turn on or resume from blanking in true black for flexible performance capability.

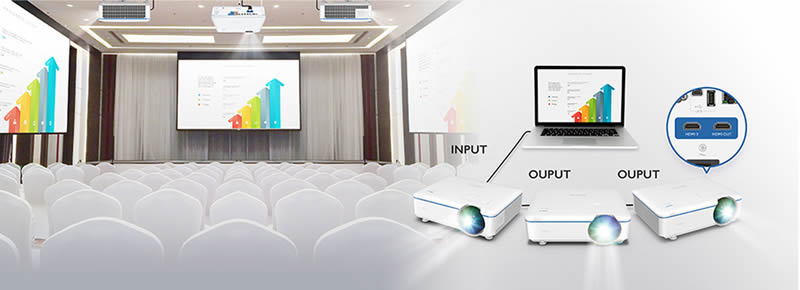

Digital HDMI Output for Multi-Screen Projection
For large meeting rooms accommodating 50-80 participants, multiple projected screens can offer improved viewing experiences for the audience. Conventional projectors provide an analog-signal VGA output, which can decay due to transmission distance. BenQ LK952 delivers a perfect digital signal via HDMI output directly from projector to projector or other HDMI display devices with no signal degradation.
*Supports resolution up to 4K 30p
DICOM X-ray Imaging
DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing and transmitting medical imaging information. DICOM Simulation Mode is ideal for viewing grayscale medical images, such as X-rays, with an advanced grayscale level for training and educational purposes.
360°Rotation Projection
BenQ’s LK952 can be tilted vertically at any angle, allowing projection onto ceilings, walls, floors, or angled signage to fulfill any projection demand.
Big Zoom and Lens Shift for Flexible Installation
LK952’s wide zoom range and horizontal/vertical lens shift systems can perfectly align images in any challenging venue such as when lights or vents are located at the ceiling mount site. Lens shift can move projected images up and down by 60% of screen height or left and right by 23% of screen width. The 1.6X big zoom feature offers a wide range of throw distances to significantly increase installation flexibility for diverse mounting options in various public display scenarios.
Wired Remote Control
Wired Remote Control offers projector installers and IT managers extra set-up convenience and ease of operation. The added wired control functionality makes the device a dependable choice for projector installation adjustment.
Designate Remote Control ID to Projector for Independent Control
Installers and IT managers can assign a specific remote control ID to each projector, avoiding signal interference and unintentional changes when installing multiple projectors in a venue.
Bottom Surface Grip Design
LK952 is designed with grips on its bottom surface to easily and safely transport the projector during installation or moving from one venue to another.
Centre of Gravity Mark on Case Bottom
Embedded with a small but helpful detail, the bottom of the projector is marked with the center of gravity to make installation even easier.
Enduring Reliability
IP5X Dust Guard™ Pro for Superior Dustproofing
Sealed Engine
BenQ’s LK952 laser projector is designed with sealed laser modules and enclosed light engines to protect the DMD chip, color wheel sensor, laser light source, and other optical components. It effectively eliminates color wheel sensor failure, visible spots on the image and color decay to significantly reduce service costs and downtime. The design has passed the dust chamber test standard for the international dustproof rating of IP5X.
Anti-Dust Accumulation Sensor to Resist Dust Buildup
By incorporating an ingenious anti-dust buildup feature in the color wheel sensor, BenQ LK952 prolongs optimal performance by repelling dust that can accumulate on traditional sensors to block the IR signal and cause flickering, abnormal colors, or even shutdown.
Long-Lasting 20,000 Hour Performance
BenQ BlueCore laser projectors deliver 20,000 hours of superior image quality and performance. The laser light source resists color decay over time, making BenQ laser projectors ideal for multiple blending projections without concern for adjacent projectors generating different levels of brightness after a period of operation.
High Altitude Mode for Elevated Environments
Equipped with an integrated air pressure sensor, LK952’s intelligent High Altitude Mode automatically alerts users to enable efficient cooling and properly maintain operating temperatures in high altitude environments with thinner atmospheres.
Low Maintenance Cost
Laser Light Creates Value Over Time
BenQ BlueCore projectors feature laser light sources that are guaranteed for 20,000 hours of maintenance-free operation, saving costs for lamp replacement and maintenance. Based on the average brightness cut-off of typical long-life lamps, BlueCore’s value exceeds that of 10 lamp replacements over the life of the projector.
Highly Integrated Network Control and Management System Compatibility
Comprehensive Control System Compatibility
LK952 is widely compatible with leading projector control systems including Extron, Crestron, AMX and PJ-Link for network control via LAN, making it simple to integrate into corporate network infrastructures. When there is no LAN infrastructure, LK952 also supports RS-232 for reliable long-distance installations up to 15 meters.
Centralized Control with BenQ MDA Software
BenQ’s Multiple Display Administrator (MDA) software provides powerful centralized multi-projector management, including automated opening and closing procedures for public spaces, remotely controlled power on and off, and scheduling for institutions and corporations.
HDBaseT Compatibility
The leading-edge HDBaseT connectivity combines video, audio and device control signals from multiple sources including PCs, laptops, document cameras, and Blu-rays onto a single CAT5 cable, ensuring seamless transmissions up to 100 meters.
Specifications
| Display | |
| Projection System | DLP Single 0.47″ XPR 4K |
| DMD type | DC3 DMD Chip |
| Resolution | 4K UHD (3840 x 2160) |
| Brightness | 5000 ANSI Lumens |
| Contrast Ratio* | 3,000,000:1 |
| Display Color | 30 Bits (1.07 billion colors) |
| Aspect Ratio | Native 16:9 (5 aspect ratio selectable) |
| Light Source | Laser |
| Light Source Life* | 20,000 hrs |
Optical |
|
| Throw Ratio | 1.36 ~ 2.18 |
| Zoom Ratio | 1.6x |
| Lens Control | Manual Zoom and Focus |
| Lens Shift | Manual lens shfit, V: ±60 %; H: ±23 % |
| Keystone Correction | 1D keystone, V: ±30 degree |
| Projection Offset | NA |
| Projection Size | 30″ ~ 300″ |
Audio |
|
| Built-in Speaker | 10W |
| Special Feature | |
| Security(anti-theft) | Security Bar |
| Feature | 4K UHD, HDR, Projector/ Remote Control ID Setting, Auto High Altitude Mode, HDBaseT, LAN Control, 360∘Projection, Dust-Proof Filter |
| Compatibility | |
| Resolution Support | Up to 3840x2160p |
| Horizontal Frequency | 15K ~135KHz |
| Vertical Scan Rate | 24~120Hz |
| HDTV Compatibility | SDTV(480i/576i), EDTV (480p/576p), HDTV (720p, 1080i 60/50, 1080P 50/60/30/25/24, 3840x2160p 60/50/30/25/24) |
Power |
|
| Power Consumption(Max/Normal/Eco) | Max 585W/ Normal 520W/ Eco 390W |
| Standby Power Consumption | Normal < 0.5W, Network <2W |
| Power Supply | 100 ~ 240V AC |
| Dimension and Weight | |
| Product Dimensions (WxHxD) | 490.0×159.0 x 380.0mm |
| Product Weight | 10.1 kg |
Operation Condition |
|
| Noise Level (Normal/Eco) | 40/38 dBA |
| Operating Temperature | 0 ~ 40o C |
| Accessories | |
| Accessories (Standard) | Power Cord Remote control (RCA011) Lens cover AAA Batteryx2 Installation Guide/Regulatory Statement(Combined) Warranty card(by sku) Anti-dust Filter |
