• Cost-effective solution thanks to simplified installation process
  • Support for various installation scenarios through flexible design
  • LED HDR technology for clear, accurate picture presentation

Pixel pitch Sizes

SAMSUNG Indoor Active LED IEA-CLS

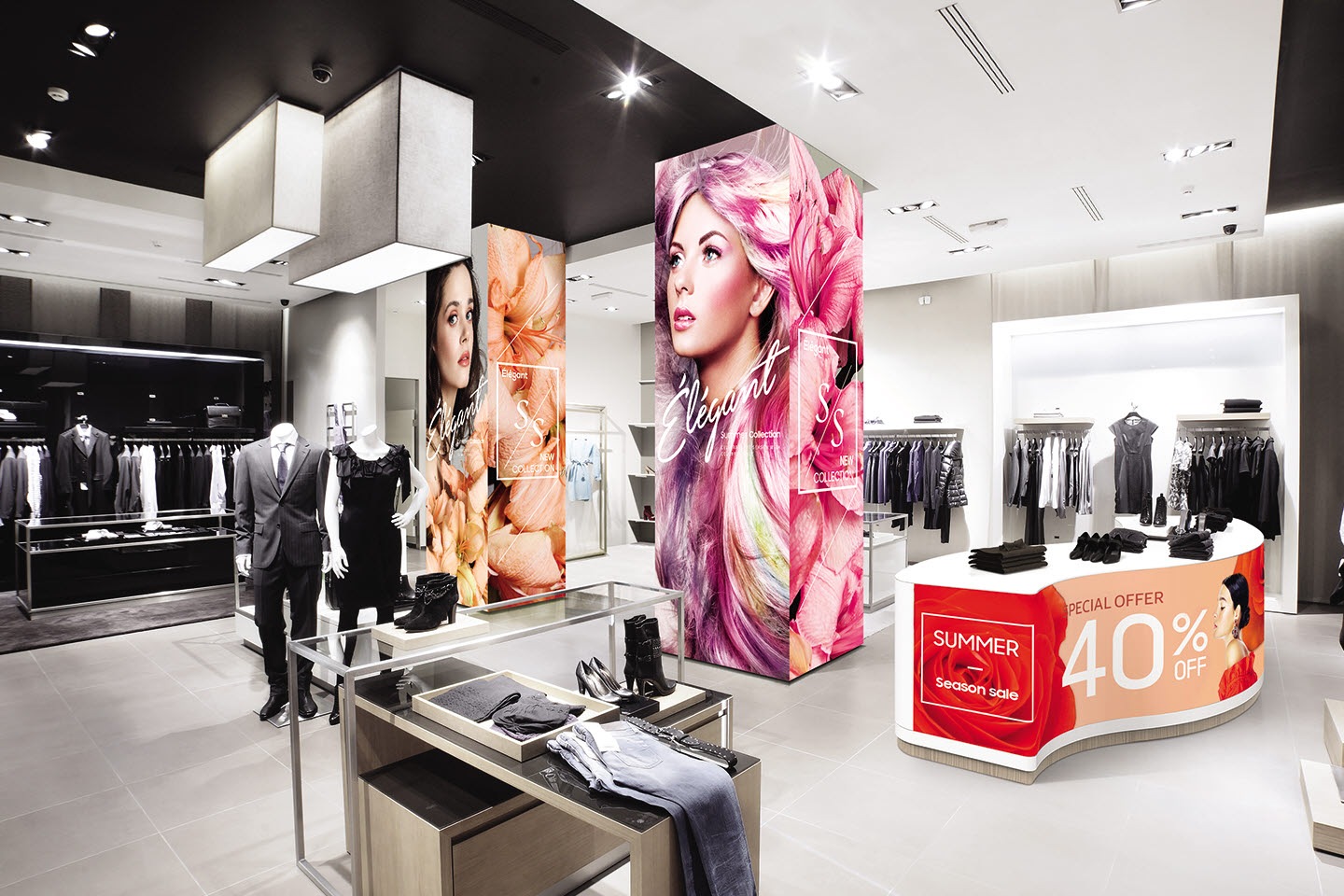

Captivate potential customers

Samsung Indoor Active LED IEA-CLS deliver stunning picture quality at a cost-efficient price point. This displays can be custom-fit for the specific space requirements, giving customers a more immersive experience.

IEA-CLS Indoor Active LED

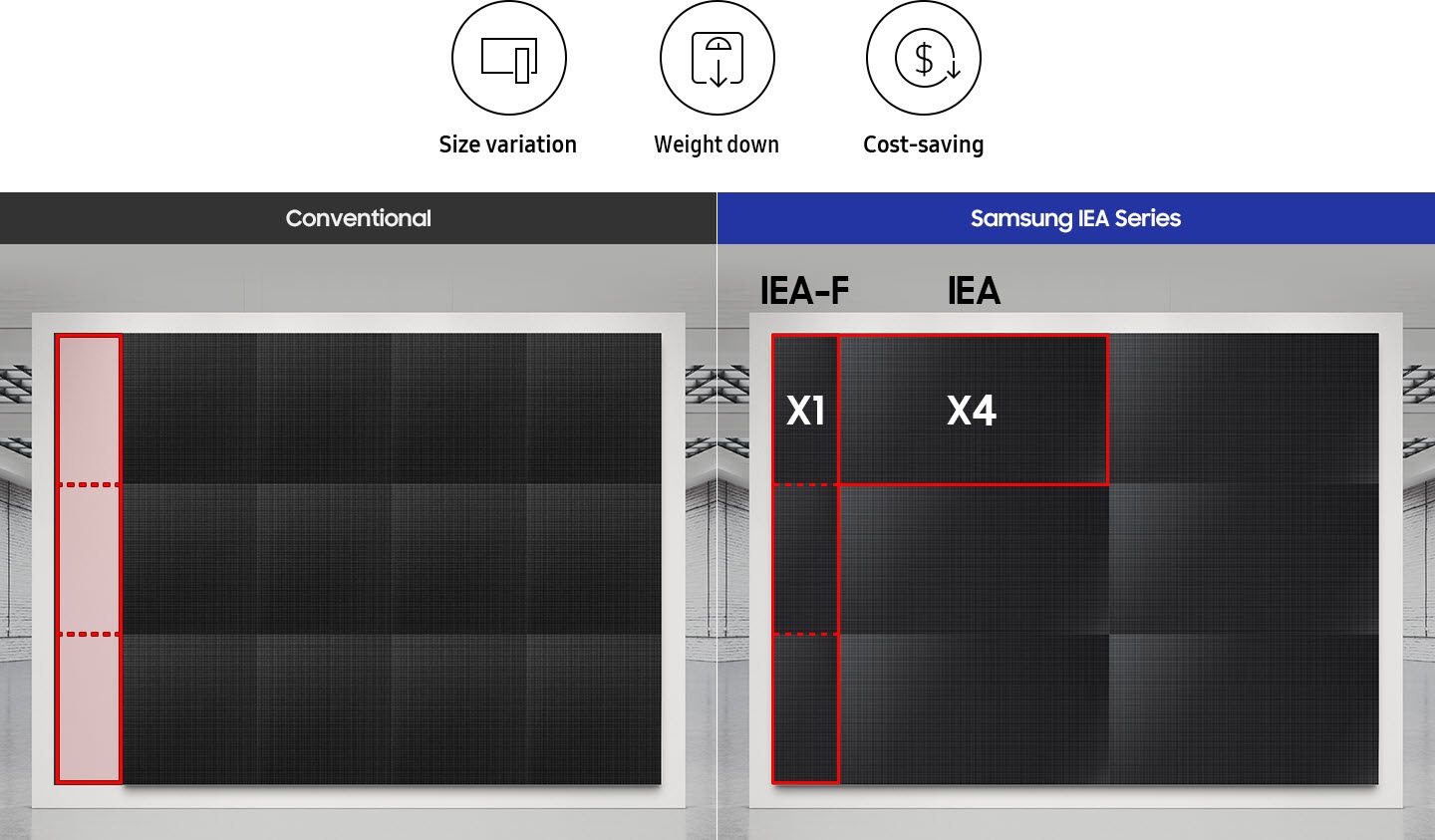

Easier, cost-saving installation

The Indoor Active LED IEA-CLS supports two cabinet types. One version features a larger, lighter screen compared to conventional cabinets, simplifying installation. The other is a quarter of the size and provides more flexibility in design.

IEA-CLS Indoor Active LED



The SAMSUNG Indoor Active LED

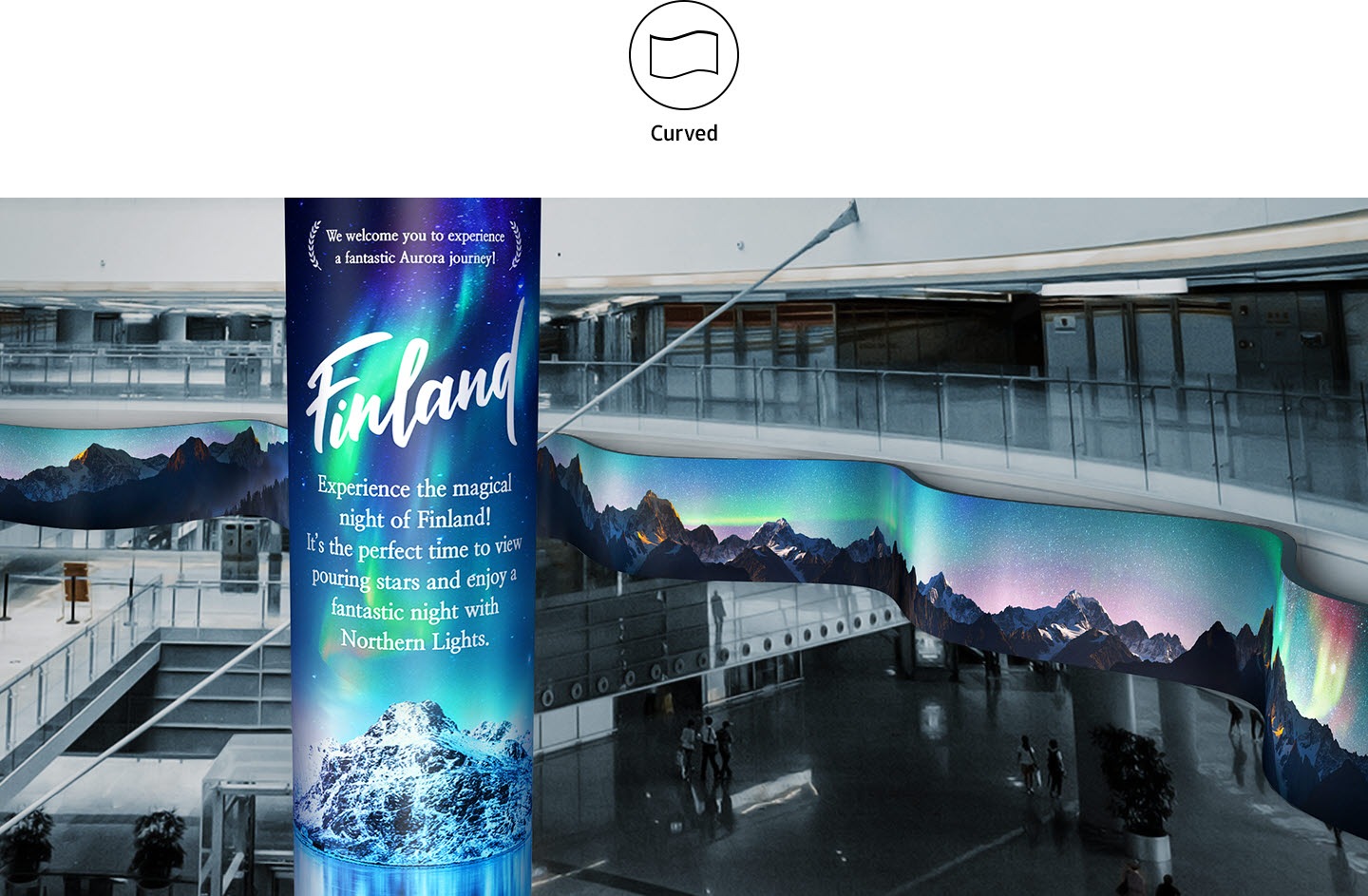

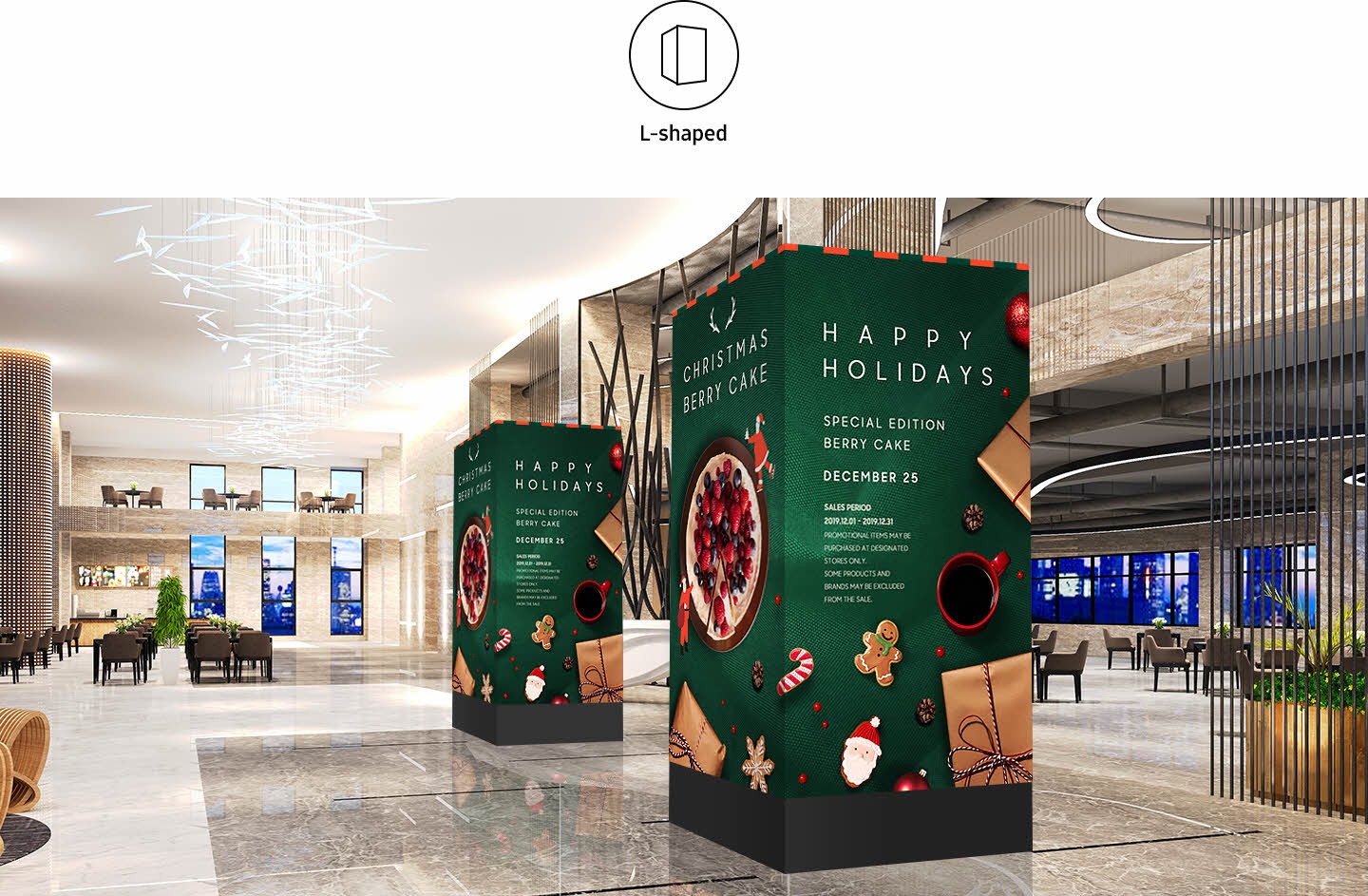

IEA-CLS Flexible design

The IEA series’ advanced design provides flexibility for any indoor retail or other business environment. With support of portrait and landscape orientation — and even curved* and l-shaped installations — content can be displayed to meet the preferred layout for any store location.

IEA-CLS Indoor Active LED

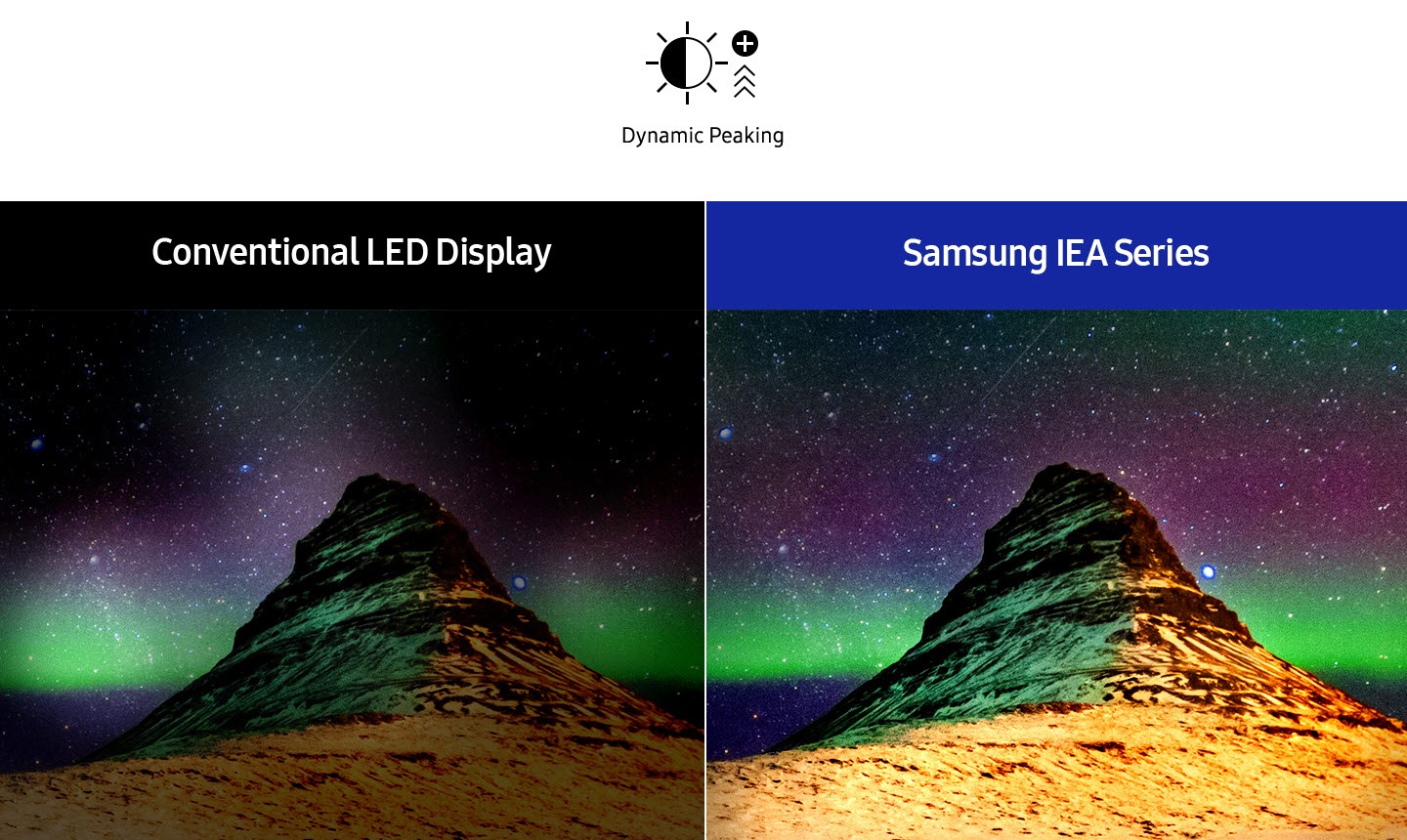

The LED HDR leverages advanced refinement technologies for true-to-life picture presentation. Dynamic Peaking and Inverse Tone Mapping enhance content to optimum peak brightness levels with improved contrast and without shine, and in-depth Color Mapping ensures an accurate expression of colors.

IEA-CLS Indoor Active LED
IEA-CLS Indoor Active LED

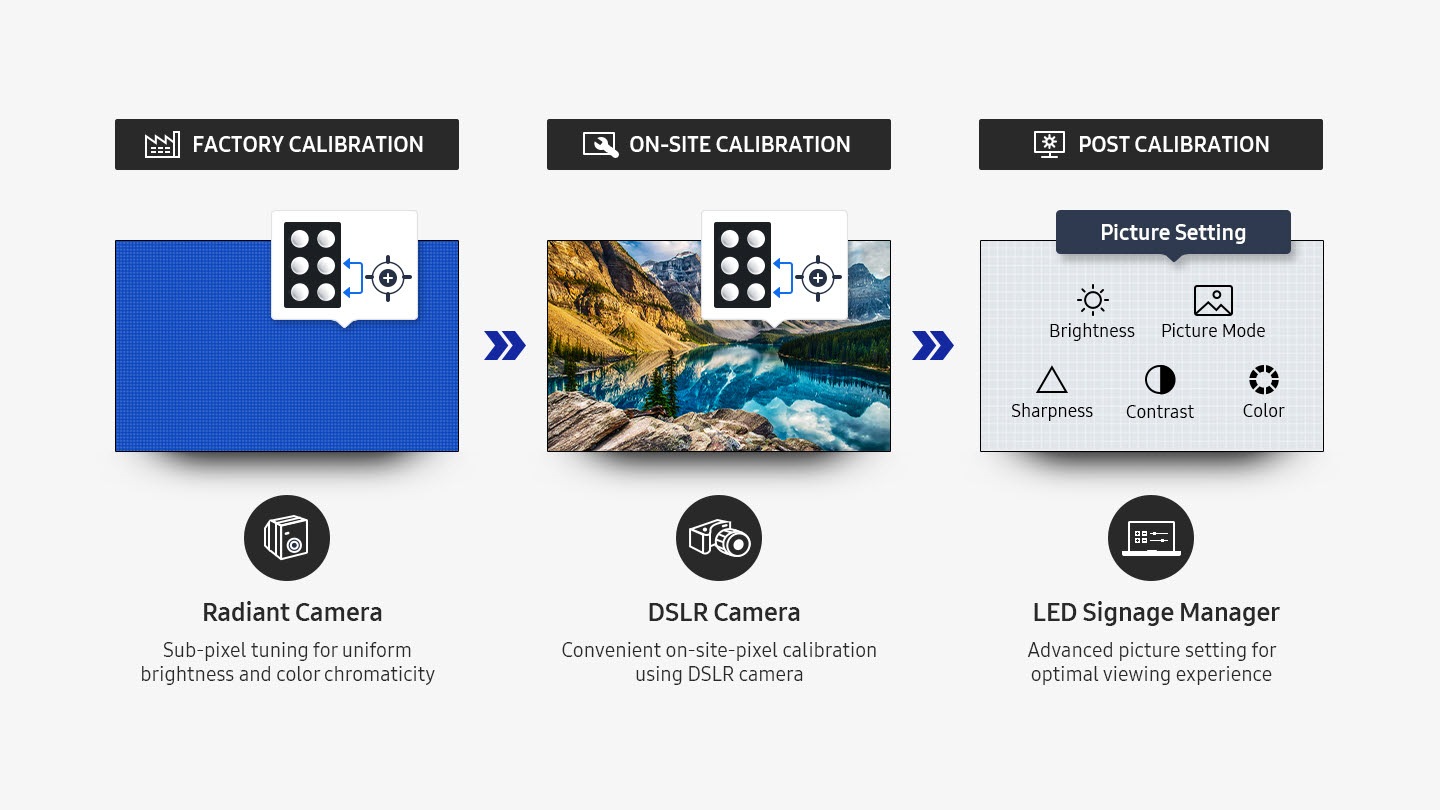

Fine-tuned uniformity

Rigorous factory calibration and real-time DSLR camera sub-pixel calibration fine-tune all sub-pixels for uniform brightness and color chromaticity. When coupled with the Samsung LED Signage Manager’s advanced picture settings, this enhanced treatment produces an excellent presentation.

IEA-CLS Indoor Active LED

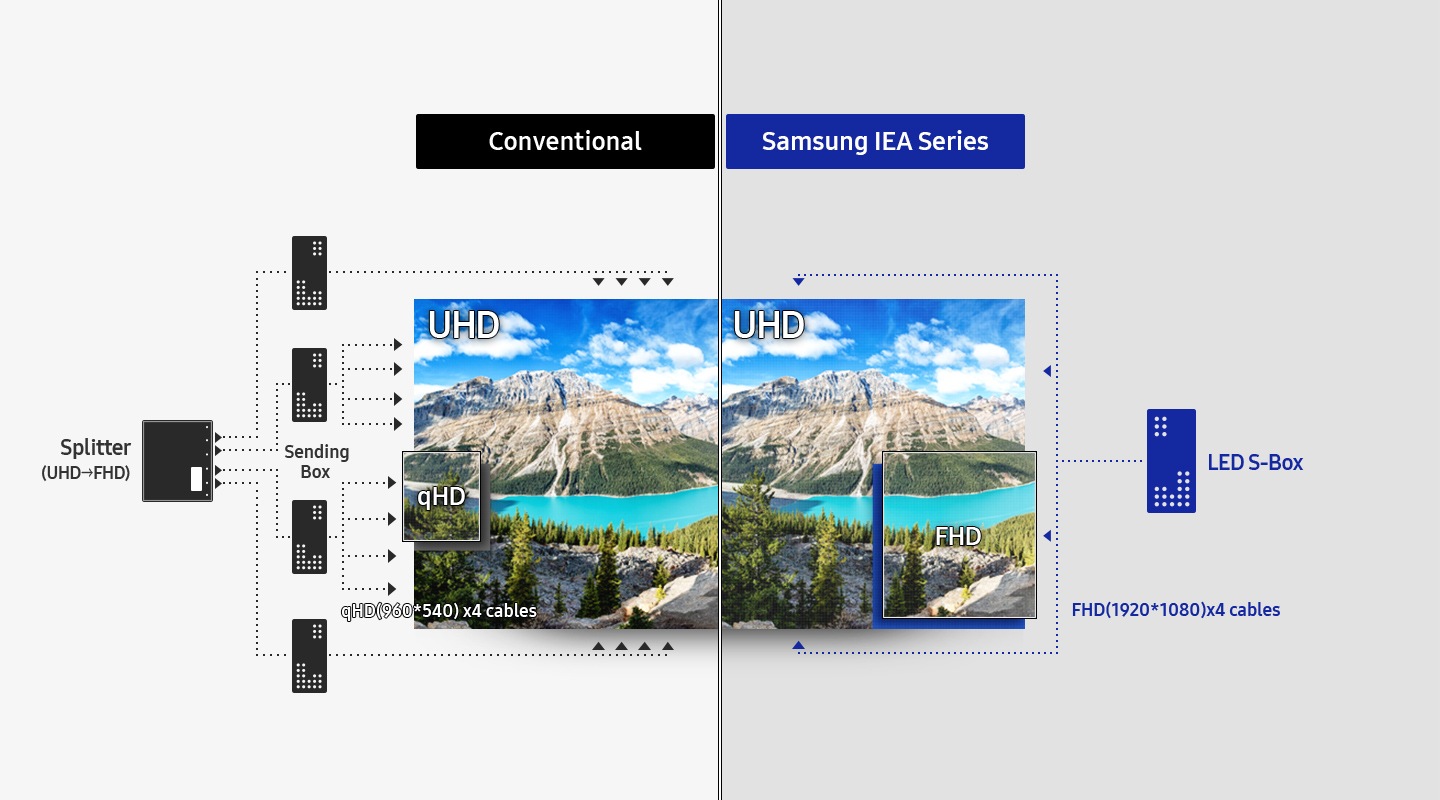

Streamlined UHD content delivery

SAMSUNG Indoor Active LED IEA-CLS compatible S-Box condenses the delivery of compelling content to a single and centralized device. The S-Box transmits UHD content across multiple IEA series displays without requiring external boxes or splitters, helping businesses enjoy faster and more cost-efficient operations.

SAMSUNG Indoor Active LED IEA-CLS

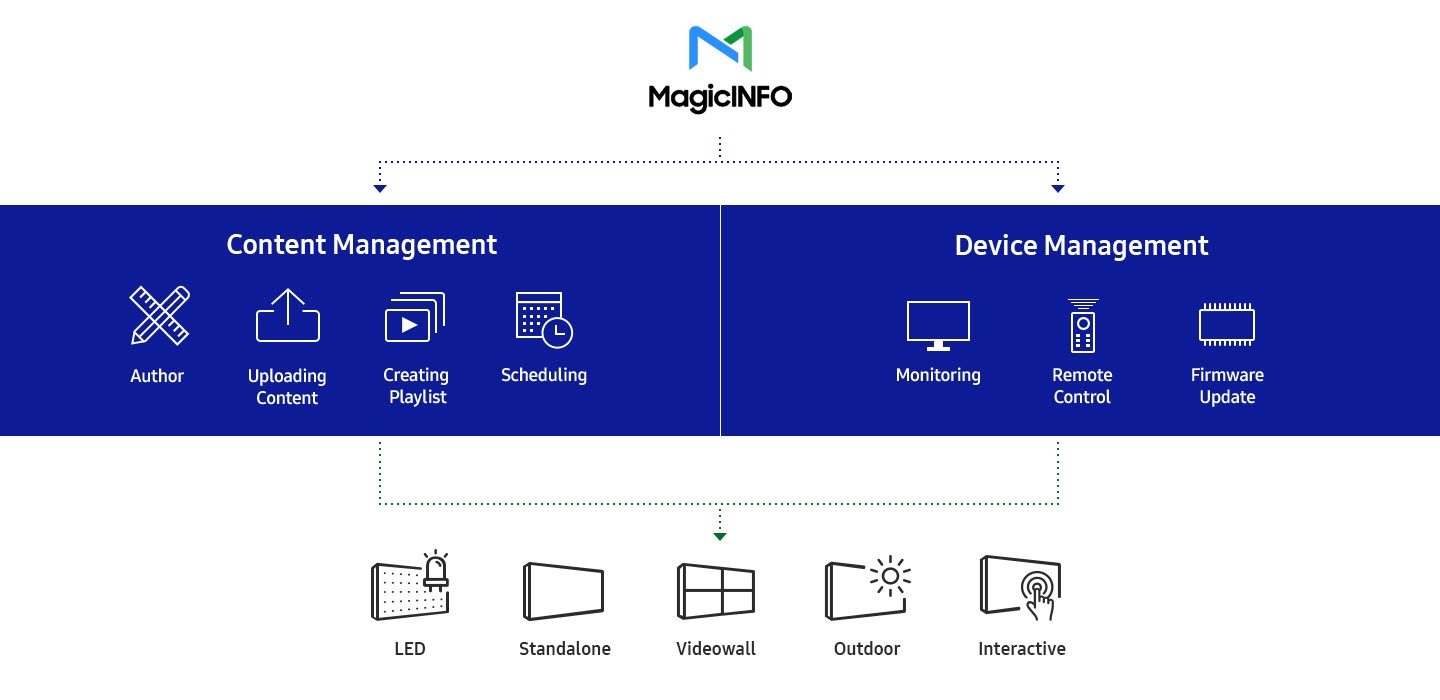

To Manage content

and devices anywhere

And then Compatibility with the MagicINFO platform enables IEA series users to create, schedule and deploy content across an entire signage network. Users likewise can monitor and adjust display settings and troubleshoot potential performance issues from any location via remote access.

SAMSUNG Indoor Active LED IEA-CLS

SAMSUNG Indoor Active LED IEA-CLS

  Specifications
  • Working Temperature0℃~+40℃/10~80%RH
  • IP RatingIP20
  • Pixel Pitch1.5mm
  • Pixel Configuration640 X 360

Operation Conditions

  • Working Temperature0℃~+40℃/10~80%RH
  • IP RatingIP20

Physical Parameter

  • Pixel Pitch1.5mm
  • Pixel Configuration640 X 360
  • Diode TypeSMD 3-in-1 1212

Optical Parameter

  • Brightness500nit
  • Contrast Ratio6000:1
  • Viewing Angle (Horizontal/Vertical)150/150°
  • Color Temperature6,500K+-500K

Electrical Parameter

  • Video Rate60 Hz
  • Input Voltage (alternating current)100~240VAC
  • Power Frequency50/60Hz
  • Power Consumption (Max)367 W/㎡
  • Refresh Rate3840 Hz
