Samsung QB85C UHD 4K Signage Display

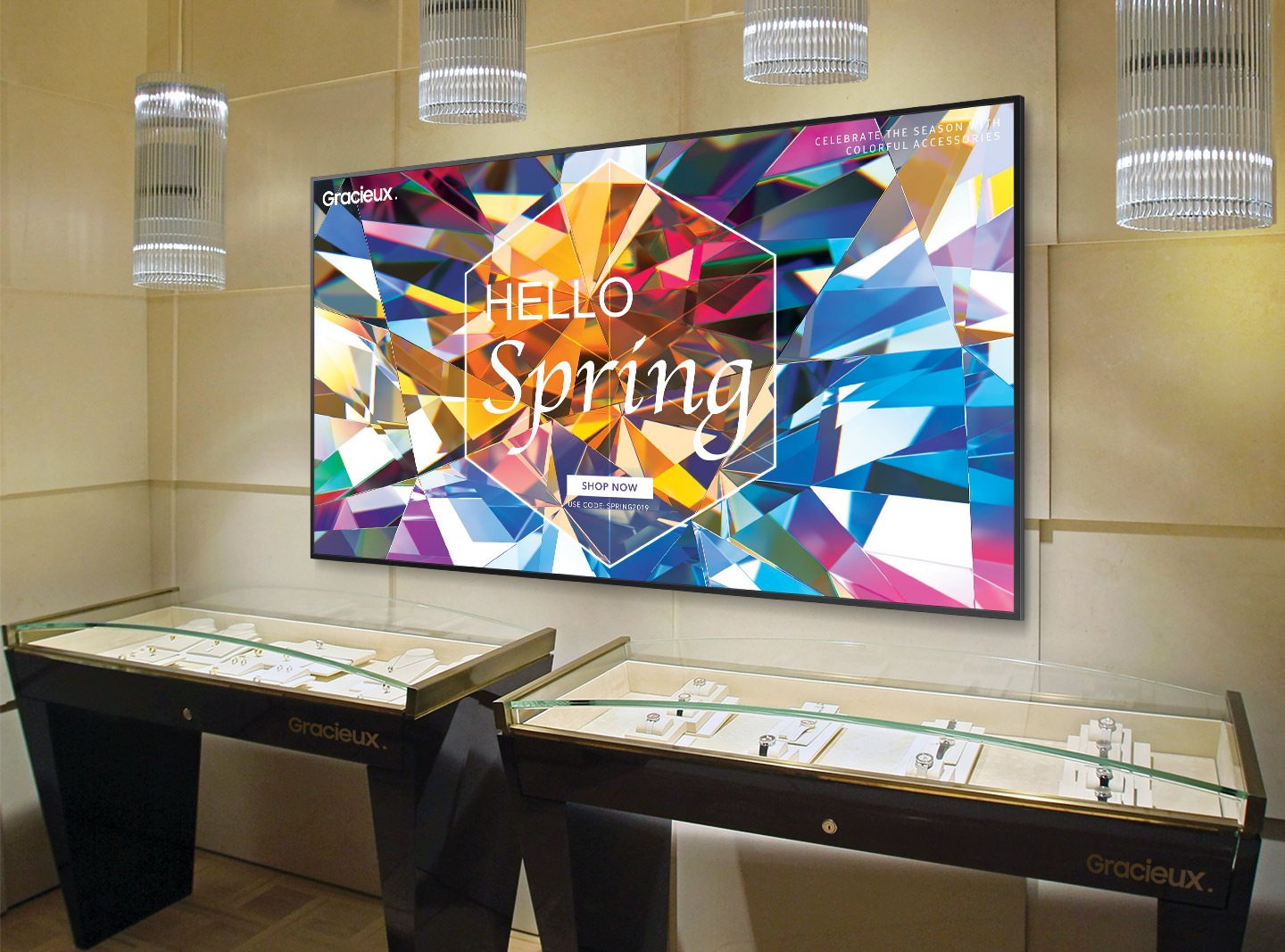

Time to upscale your display
Samsung’s new QBR series displays cut through the clutter to deliver best-in-class UHD resolution as well as intelligent UHD upscaling and rich flawless colors with Dynamic Crystal Color all in a slim design.
Incredible 4K picture quality
Samsung QB85 UHD 4K Signage Display QBR series provides ultra high-definition 4K resolution, creating lifelike images with sharper picture quality than ever before.
Crystal Processor 4K
Intelligent Samsung QB85C UHD 4K Signage Display UHD upscaling technology, made possibly by Samsung’s Crystal Processor 4K, allows content developed at a lower resolution to be elevated to UHD-level quality. It also performs edge restoration and noise reduction to optimize on-screen text and imagery.
Dynamic Crystal Display
The Samsung QB85C UHD 4K Signage Display features Dynamic Crystal Display, using 10 bit processing for flawless color expression, allowing viewers to enjoy a wider spectrum of colors up to one billion shades. HDR+ compatibility converts standard definition content to HDR quality for sharper contrast and more vivid colors.

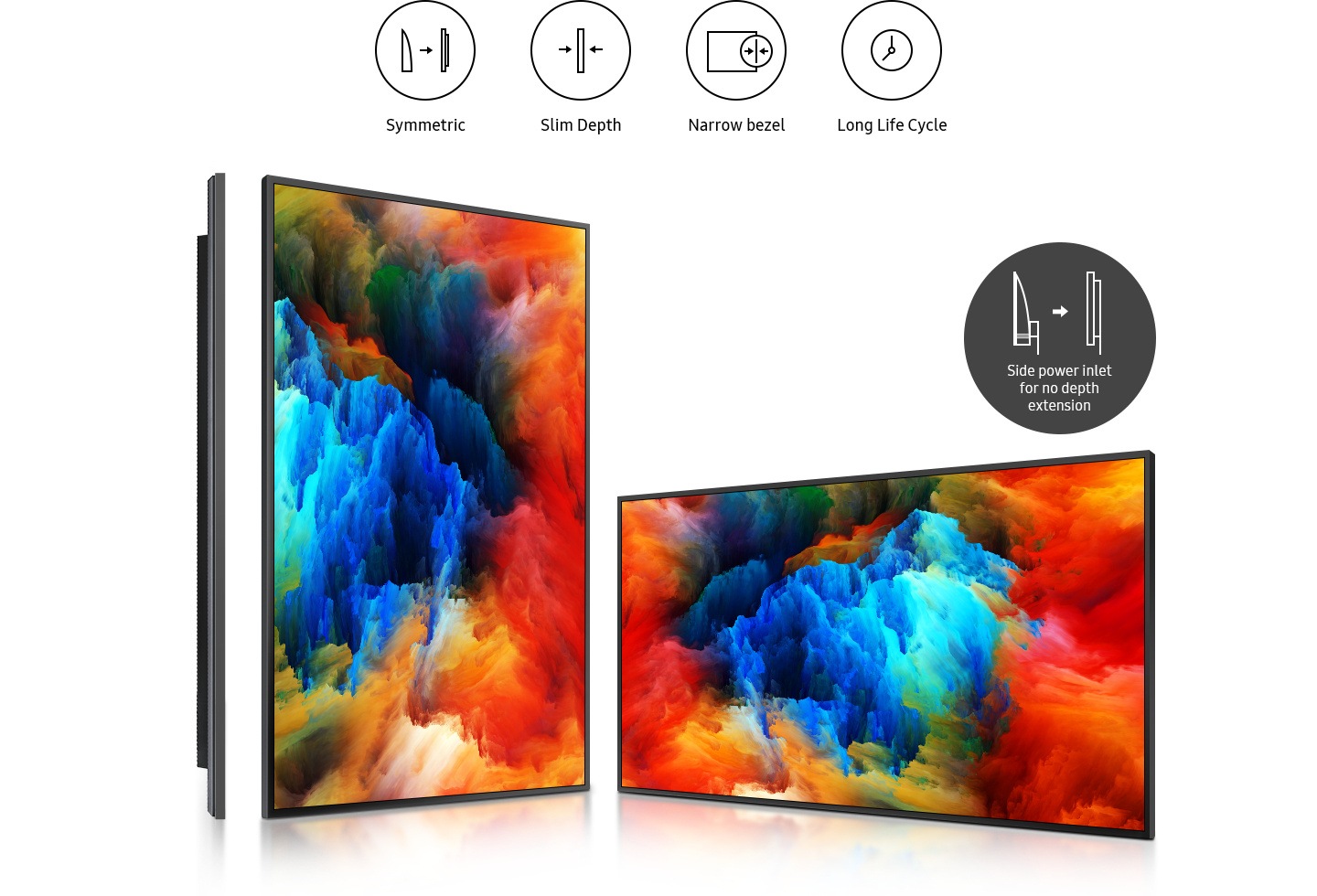

Slim and symmetrical design
The QBR series features an all-new symmetric design simplifying wall mounting and ensuring installation is seamless. The flat back and slim depth will ensure a display that will stand the test of time.
Clean cable management
With QBR’s new cable guide feature, retailers are able to tuck away messy cables from view. This allows for a clean and visually-appealing shopping expeience for customers, even when the back of the display is visible.
Powerful, all-in-one solution
SSSP is an all-in-one solution that simplifies installation and maintenance. With Tizen 4.0, businesses can enjoy easy development, reinforced capability with multiple web formats and standards and secured protection.
Samsung Workspace secured by Knox
With security provided by Knox, the displays feature Samsung Workspace which supports wireless cloud service access and control of a PC without needing a physical connection. Samsung Workspace simplifies meeting spaces while also improving security.
Samsung QB85 UHD 4K Signage Display
WiFi and Bluetooth built-in
Built-in WiFi and Bluetooth allow for more personalized and interactive services as well as simplifying how businesses showcase content. Whether it’s to make networking simpler or enabling interactive beacon technology in-store, QBR series displays help businesses move into the future of retail.
Samsung QB85 UHD 4K Signage Display
Technical Specifications
| Brand | Samsung |
| Model Name | QB85C |
| Resolution | 3840*2160 (4K UHD) |
| Pixel Pitch (mm) | 0.4875 x 0.4875 |
| Active Display Area (mm) | 1872.0(H) x 1053.01(V) |
| Brightness (Typ.) | 350 nit |
| Contrast Ratio (Typ.) | 4000:1 |
| Viewing Angle (H/ V) | 178/178 |
| Response Time (G-to-G) | 8ms(Typ.) |
| Display Colors | 16.7M(True Display) 1.07B(Ditherd 10bit) |
Color Gamut |
92% (DCI-P3, CIE 1976) |
| Sound Speaker Type Built in Speaker | Built in Speaker(10W + 10W) |
| RGB | DVI-D |
| VIDEO | HDMI 2.0 (2) |
| AUDIO Stereo | Stereo Mini Jack, DVI/HDMI/Audio(Common) |
| Connectivity USB | USB 2.0 x 2 |
| AUDIO | Stereo Mini Jack |
| EXTERNAL CONTROL | RS232C(in/out) thru stereo jack, RJ45 |
| EXTERNAL SENSOR | IR |
| Power Supply | AC 100 – 240 V~ (+/- 10 %), 50/60 Hz |
| Max [W/ h] | 198 |
| Power Typical [/ h] | 143 |
| BTU (Max) | 675.2 |
Operating Temperature |
0 ? ~ 40 ? |
| Humidity | 10 % ~ 80 % |
| Set | 1897.8 x 1080.8 x 56.7 |
| Package (32 x 19 x 5) | 2090 x 1247 x 260 |
| Set | 48.4 |
| Package | 63.7 |
| VESA Mount 200 * 200mm | 600 X 400 |
| Warranty | 3 Years Onsite Warranty |
